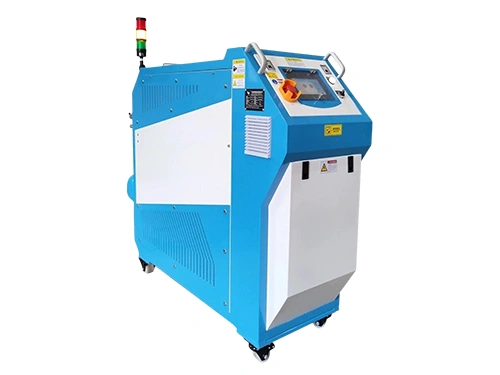

Mold Channel Cleaning Machine

Mold waterway cleaning machine for automatic pulse cleaning of water circuit in molds

The mold channel cleaning machine is engineered for the automated cleaning of mold cooling channels, effectively removing scale, rust, and other deposits to improve cooling efficiency and extend mold service life. It offers both automated and manual cleaning modes, along with integrated flow detection, leak and pressure testing, and data recording and query functions, ensuring reliable performance and traceable maintenance.

Request a Quote

Specifications

Model	JNX-D2K
Power	3.0kW
Water tank capacity	100L
Number of water tank	2 tanks
Input voltage	380V/50Hz
Display	7-inch display
Control system	PLC control system

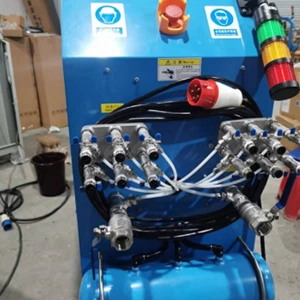

Piping	Six in – Six out 3/8" (one group), One in – One out 1" (one group)
Pipe diameter	DN25
Intake air pressure	min. 0.4MPa
Ambient temperature	5~65℃
Booster pump	0.6-0.9MPa
Cleaning water pressure	0.2-0.5MPa
Cleaning air pressure	0.6-0.9MPa
Machine dimensions	160×50×120cm
Machine weight	320kg

Applications

Injection molding
Die-casting molds
Rubber mold production
Food processing mold cleaning
Medical device mold maintenance

Key Advantages

Chemical-Free Cleaning Utilizes cavitation technology for purely physical descaling, eliminating need for harmful chemicals and ensuring eco-friendly operation.
Smart Control Integrated intelligent system supports multiple modes (cavitation, pulse, unidirectional/bidirectional flow) with adaptive settings for different mold channels. Includes self-diagnostic functions.
Dual-Tank Design Separate tanks for cleaning and rinsing prevent cross-contamination and ensure residue-free results.
Auto Drying Automatically blows residual water from pipelines into tanks during/after cleaning, preventing leaks during disassembly and rust from moisture retention.
Energy Efficiency Adopts variable frequency energy-saving design, automatically stabilizing pressure based on pipeline size to provide consistent water pressure and reduce energy consumption.
