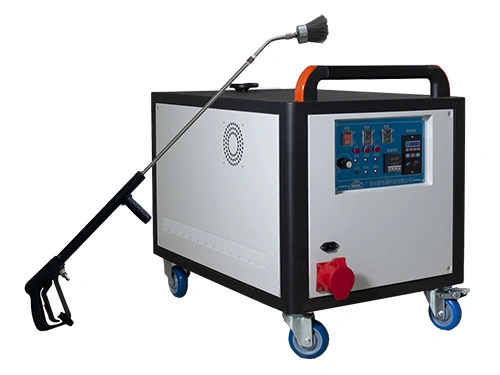

Electric Steam Cleaner

Electrically heated industrial steam cleaning machine

Electric steam cleaner is a specialized machine designed for deep cleaning industrial equipment, including machinery, components, molds, and pipelines. It uses high-temperature, high-pressure steam to effectively dissolve oil, dust, rust, and bacteria.
Electric steam cleaners not only improve cleaning quality and efficiency but also conserve water and energy, making it an environmentally friendly solution.

Pump motor power: 0.75KW
Steam temperature: 170-210°C
Steam pressure: 10-30bar

Request a Quote

Italian AR pump
Stainless steel nozzle
Built-in overheat protection
One-touch operation
PLC control system
Instant steam generator

Applications

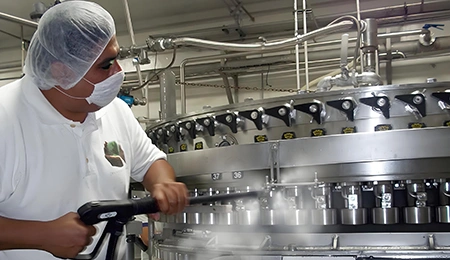

Steam cleaning of food processing equipment

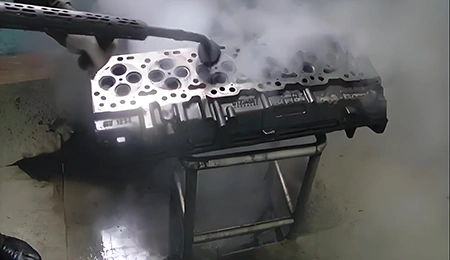

Steam cleaning of industrial molds

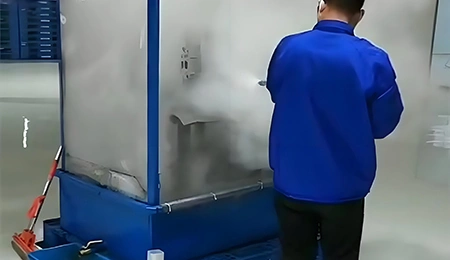

Steam cleaning the interior of industrial equipment

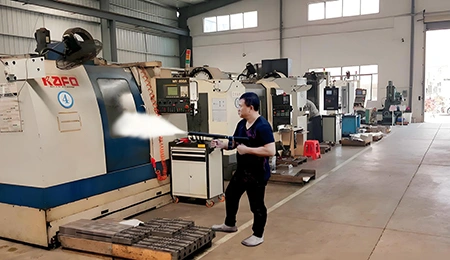

Steam cleaning of industrial machine tools

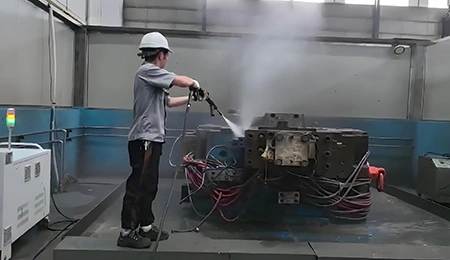

Steam cleaning of large industrial molds

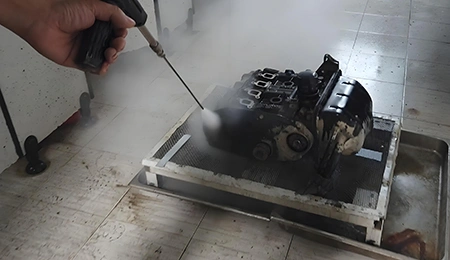

Steam cleaning of cylinder heads

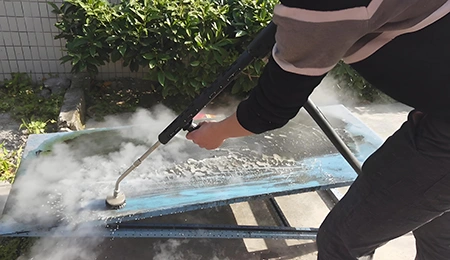

Steam cleaning of metal sheets

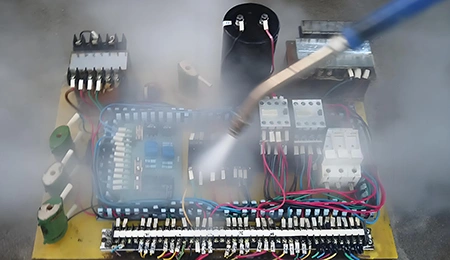

Steam cleaning of electrical control panels

Steam cleaning of coated molds

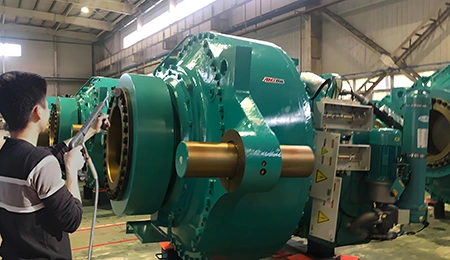

Steam cleaning of heavy industrial machinery

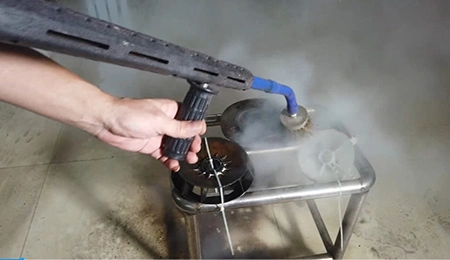

Steam cleaning of motor parts

Industrial Steam Cleaning Results

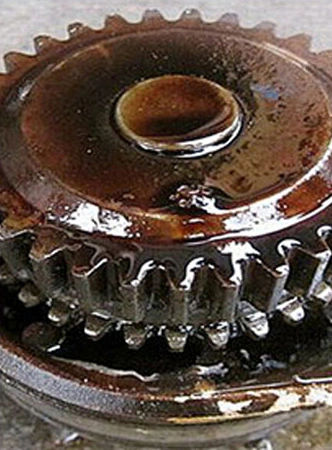

Before steam cleaning

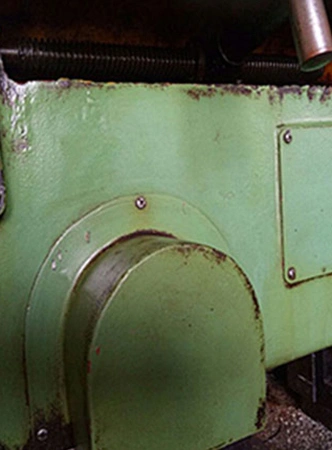

After steam cleaning

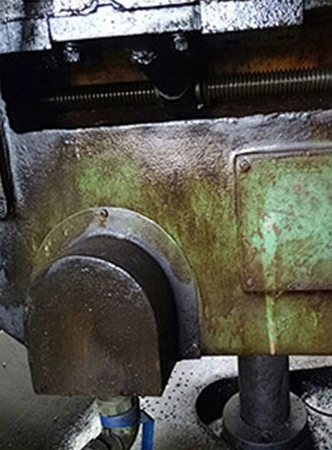

Before steam cleaning

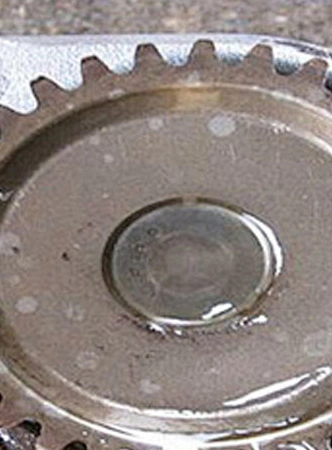

After steam cleaning

Specifications

Model
Model	JNX-18	JNX-24	JNX-36	JNX-48	JNX-72
Power	18kW	24kW	36kW	48kW	72kW
Steam generator type	Immediate heating	Immediate heating	Immediate heating	Immediate heating	Immediate heating
Pump motor power	0.75kW	0.75kW	0.75kW	0.75kW	0.75kW
Voltage/frequency	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz	380V 50Hz
Steam temperature	170-210°C	170-210°C	170-210°C	170-210°C	170-210°C
Steam flow rate	36-54l/h	48-72l/h	72-108l/h	96-144l/h	144-210l/h
Steam pressure	10-15bar	10-18bar	10-20bar	10-22bar	10-30bar
Water tank capacity	18-22L	18-22L	18-22L	18-22L	18-22L
Steam hose length	10m	10m	10m	10m	10m
Number of steam gun	1pc	1pc	1pc	1pc	1pc
Control system	PLC + touch screen (optional)
Safety protection	Water shortage/overheat protection
Sensor	Temperature sensor + pressure sensor
Dimensions	103×63×88 cm	100×52×65cm	100×52×65cm	120×65×103cm	124×68×94cm

Key Features

Efficient Cleaning
High-temperature steam quickly softens and breaks down stains, significantly improving efficiency compared to traditional methods.
Italian AR Plunger Pump
Imported pump ensures stable performance and longer lifespan.
Adjustable Steam Temperature
The steam temperature can be tailored to different cleaning requirements, providing precise control.
Built-In Overheat Protection
Automatically cuts power when temperature exceeds limits, protecting the equipment.
Automatic Water Supply System
Ensures continuous water supply during operation without manual intervention, improving workflow efficiency.
Smart Control
PLC control system enables user-friendly operation and higher automation, reducing operator workload.
Ergonomic Design
Features a steam trigger gun and nozzles with multiple angles for ease of use in diverse scenarios.

Configuration

Standard configuration

10 m stainless steel braided PTFE steam hose: 1 pc

Industrial steam gun:
1 pc

Descaling agent:
1 pack

Optional Components

High-temperature resistant steam gun
