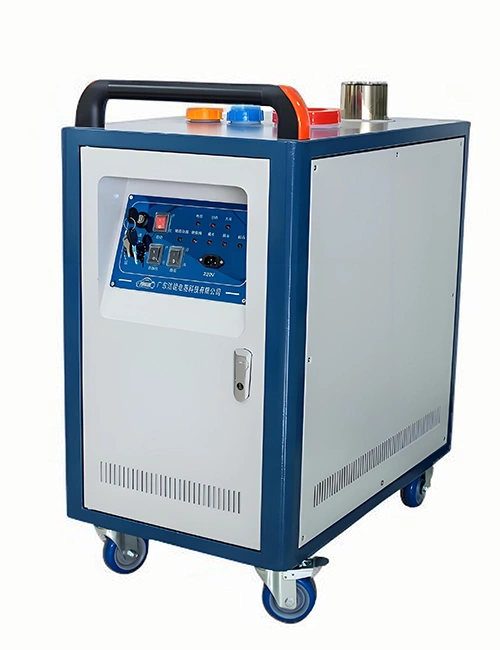

Diesel steam cleaner uses diesel fuel as its energy source, employing combustion to generate intense heat that rapidly converts water into high-temperature, high-pressure steam. Unlike electric heating methods, diesel heating operates independently of electrical power sources, making it suitable for use in areas without electricity or with unstable power supply, offering greater mobility. Additionally, the diesel heating system boasts high thermal conversion efficiency, enabling it to reach the desired steam temperature and pressure quickly, meeting the demands of efficient cleaning.
Before steam cleaning
After steam cleaning
| Model | JNX-DS |
| Power | 50kW (diesel) |
| Steam generator type | Immediate heating (diesel) |
| Burner power | 50kW (diesel) |
| Pump motor power | 0.35kW |
| Voltage/frequency | 380V 50Hz |
| Steam temperature | 170-210°C |
| Steam flow rate | 100l/h |
| Steam pressure | 10-15bar |
| Water tank capacity | 18-22L (stainless steel tank) |
| Fuel consumption | 5-6L/h (diesel) |
| Steam hose length | 10m |
| Number of steam gun | 1pc |
| Control system | PLC |
| Safety protection | Water shortage/overheat protection, low oil level sound alarm |
| Applications | construction sites, oil fields, or outdoor working environments |
| Noise level | ≤78dB |
| Emission standard | China Ⅲ Emission Standards for Non-road Vehicle |
| Dimensions | 64×57×103cm |
10 m stainless steel braided PTFE steam hose: 1 pc
Industrial steam gun:
Descaling agent:
High-temperature resistant steam gun
We’re happy to answer your questions. Send us your request and we’ll contact you soon.
The diesel steam cleaner generates high-temperature steam (up to 158–200°C) and high pressure (10–18 bar), quickly softening stubborn grime and oil residues. Steam easily penetrates hard-to-reach areas such as gaps and edges, ensuring thorough cleaning. Moreover, the diesel steam cleaner requires minimal water, significantly conserving water resources.
The diesel steam cleaner allows users to adjust both steam pressure and temperature based on the surface material, ensuring effective graffiti and stain removal while minimizing the risk of damage. For older or more fragile surfaces, the gentle yet effective nature of diesel steam cleaning is particularly advantageous, as it cleans thoroughly without compromising structural integrity.
